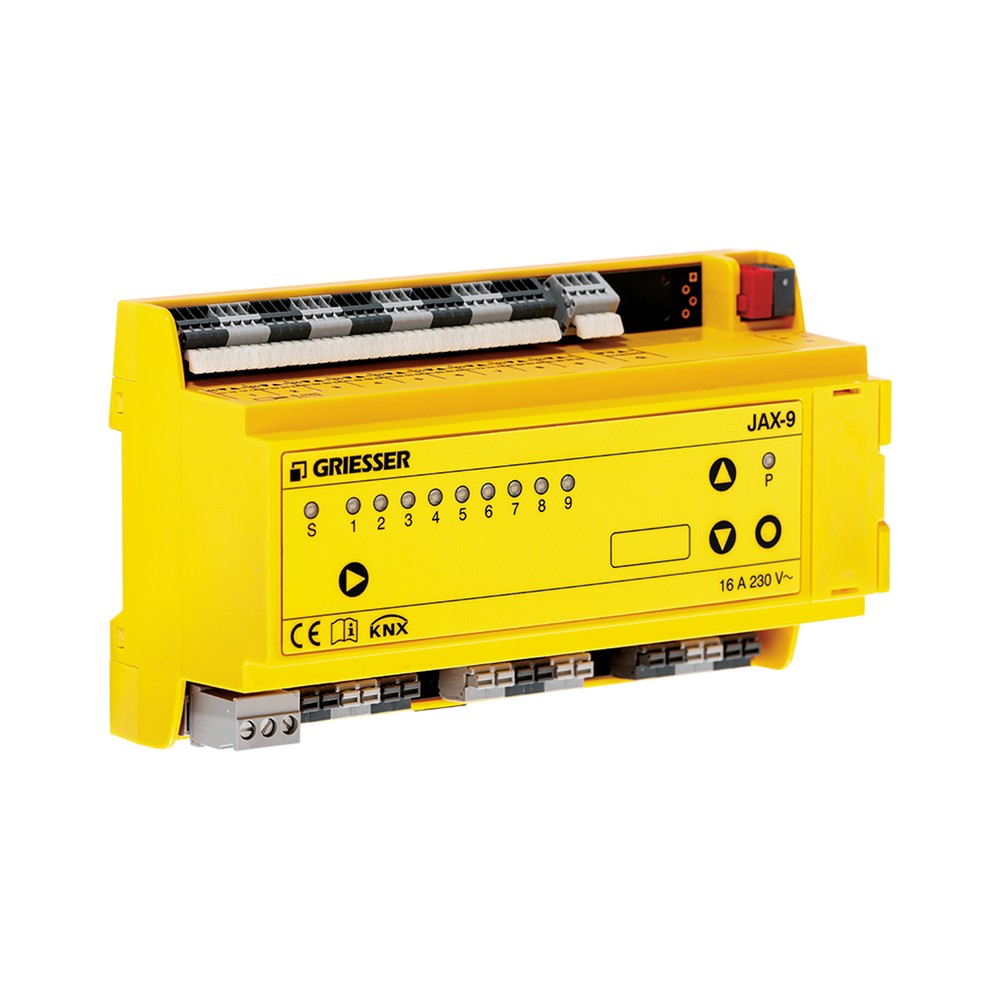

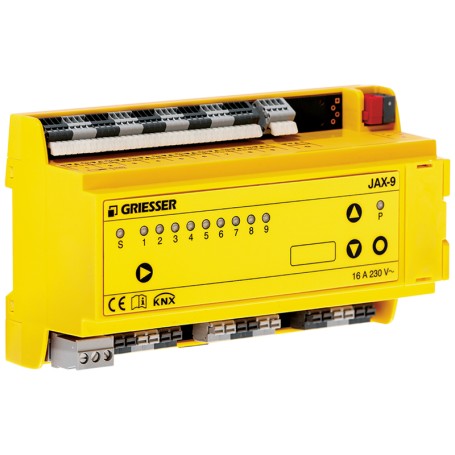

Griesser JAX-9, KNX blind actuator, For 9 motors

Product Name: JAX-9

Manufacturer: Griesser

Manufacturer-Nr.: JAX-9

Reference: 212110JAX9

Condition: New

The JAX-9 KNX blind actuator from Griesser is a sophisticated and robust 9-way blind actuator. It can be used to control all common facade products such as slat blinds, roller shutters, facade or seating awnings. With the integrated mathematical model, the mechanical properties of each façade product are exactly reproduced.

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	90.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	230VAC
Width	157.00 Millimeter
Horizontal pitch (HP)	9.0000
Portection rating	IP20
Height	57.00 Millimeter
Voltage (typical)	29.00 Volt
Input type	analog
Min. ambient temperature	5.00 Celsius
Voltage Range (Min.)	21.00 Volt
Number of inputs	1.0000
Max. ambient temperature	45.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	no details
Output type	analog
Number of outputs	9.0000
Power consumption (W)	0.00 Watt
Output Current	16.00 Ampere
Output Power	0.00 Watt
Actuator Type	Shutter Actuator
Operation humidity	Up to 95%
Recommended cable section	1.50 Square_millimeter
Bus system	Not specified
Connection Type	Terminal block, screwed
KNX Secure	No
