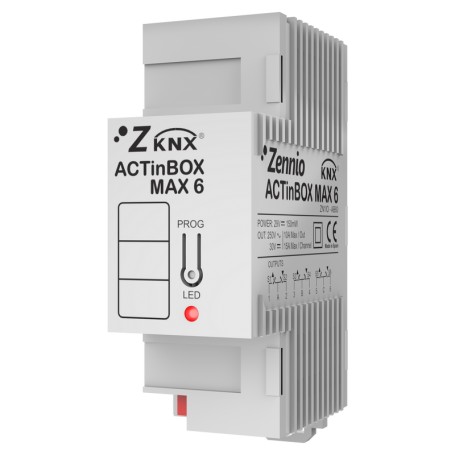

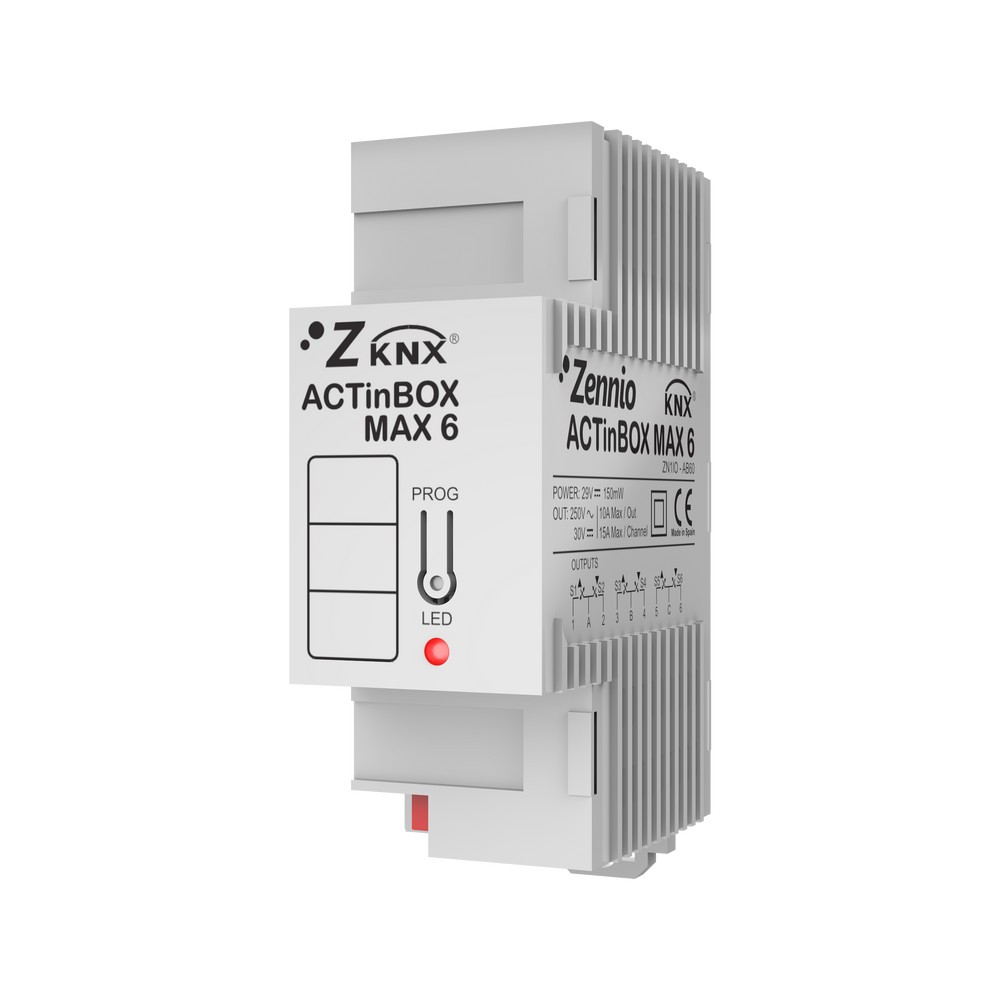

Zennio ZN1IO-AB60, multifunction actuator, 6 outputs (10A), REG

Product Name: ACTinBOX MAX6

Manufacturer: Zennio

Manufacturer-Nr.: ZN1IO-AB60

Reference: 030300ZN1IOAB60

GTIN: 8411080788870

Condition: New

ACTINBOX MAX6. KNX 6 OUTPUT MULTIFUNCTION ACTUATOR

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	95.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	Aucun requis
Width	40.00 Millimeter
Horizontal pitch (HP)	2.0000
Portection rating	IP20
Voltage (typical)	29.00 Volt
Height	75.00 Millimeter
Input type	Keine
Min. ambient temperature	0.00 Celsius
Number of inputs	0.0000
Max. ambient temperature	55.00 Celsius
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Output type	analog
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Number of outputs	6.0000
Power consumption (W)	0.20 Watt
Output Current	10.00 Ampere
Output Power	2500.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	30 to 85% RH (without condensation)
Recommended cable section	4.00 Square_millimeter
Connection Type	screwed
KNX Secure	No

More info

Downloads

Data sheet (DE)
ACTinBOX MAX6

Data sheet (EN)
ACTinBOX MAX6

Data sheet (FR)
ACTinBOX MAX6

Manual (DE)
ACTinBOX MAX6

Manual (EN)
ACTinBOX MAX6

Manual (FR)
ACTinBOX MAX6

ACTinBOX MAX6. Multifunction actuator for DIN rail (2 units) with 6 outputs (10A) which offer multiple configurations as shutter channels or individual outputs. It includes 10 independent logical functions. It is not suitable for capacitive loads.

Accessories: AC/DC shutter adapters.
