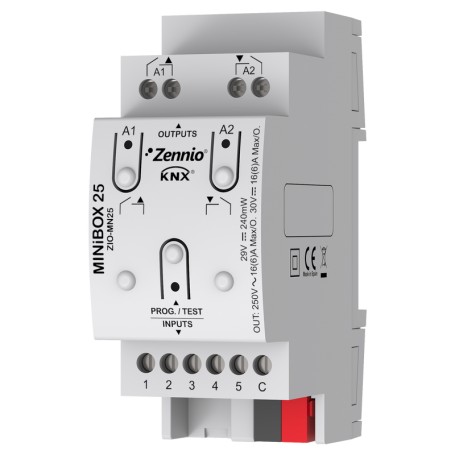

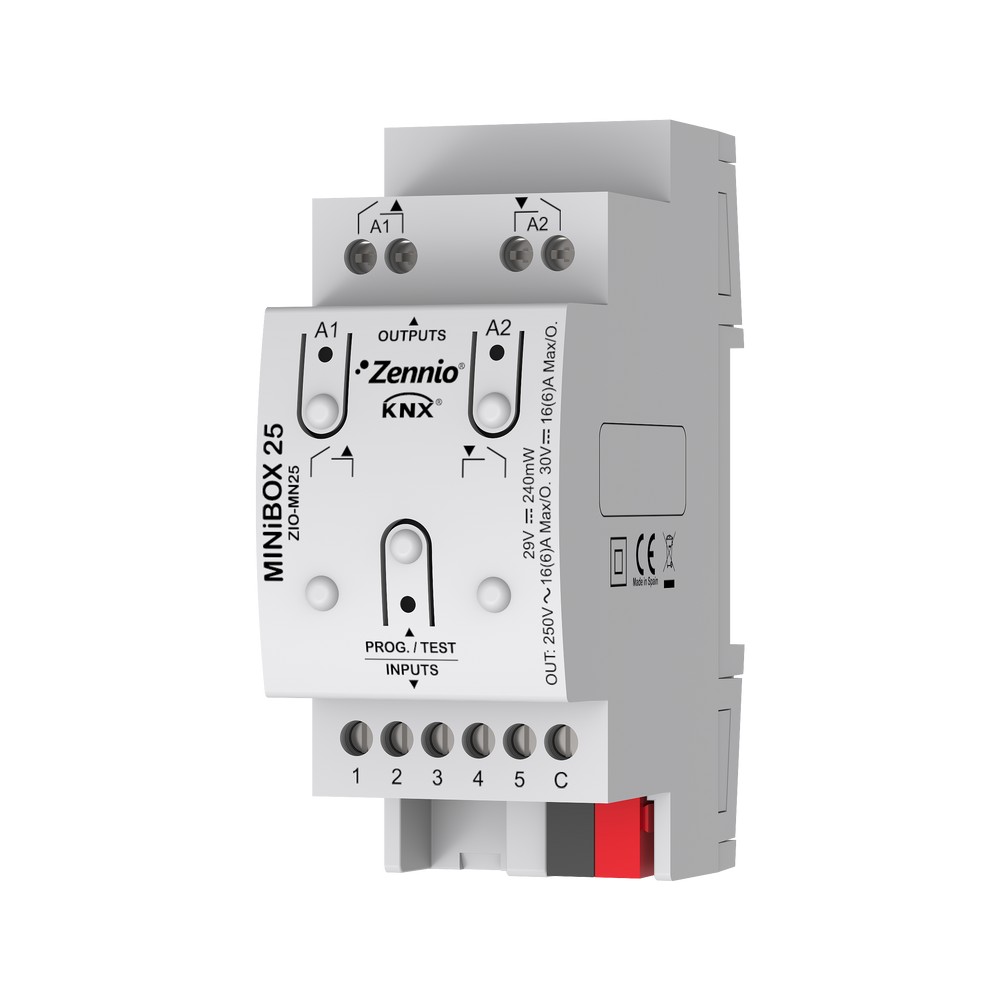

Zennio ZIO-MN25, multifunction actuator, 2 outputs (16A)

Product Name: MINiBOX 25

Manufacturer: Zennio

Manufacturer-Nr.: ZIO-MN25

Reference: 030300ZIOMN25

Condition: New

MINiBOX 25. KNX multifunction actuator - 2 outputs 16A / 5 inputs A/D

More details

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Data sheet

Length	95.00 Millimeter
Mounting options	DIN-Rail mounting
External power supply	Aucun requis
Width	40.00 Millimeter
Horizontal pitch (HP)	2.0000
Portection rating	IP20
Height	75.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Input type	analog/digital
Voltage Range (Min.)	21.00 Volt
Number of inputs	5.0000
Max. ambient temperature	55.00 Celsius
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Output type	analog
Number of outputs	2.0000
Power consumption (W)	0.22 Watt
Output Current	16.00 Ampere
Output Power	4000.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Recommended cable section	4.00 Square_millimeter
Connection Type	screwed
KNX Secure	No

More info

Downloads

Data sheet (DE)
MINiBOX 25

Data sheet (EN)
MINiBOX 25

Data sheet (FR)
MINiBOX 25

Manual (EN)
MINiBOX 25

Manual (FR)
MINiBOX 25

MINiBOX 20 / 40 (QUATRO) / 25 / 45. Multifunction actuator for DIN rail (2 units) with 2/4 outputs (16A C-load) which offer multiple configurations as shutter channels, individual outputs or even 2-pipe fancoil controller (only model ZIO-MN40) It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module. Models ZIO-MN25 and ZIO-MN45 also incorporate 5 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs, as well as four room thermostats to control heating/cooling systems.

Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.
