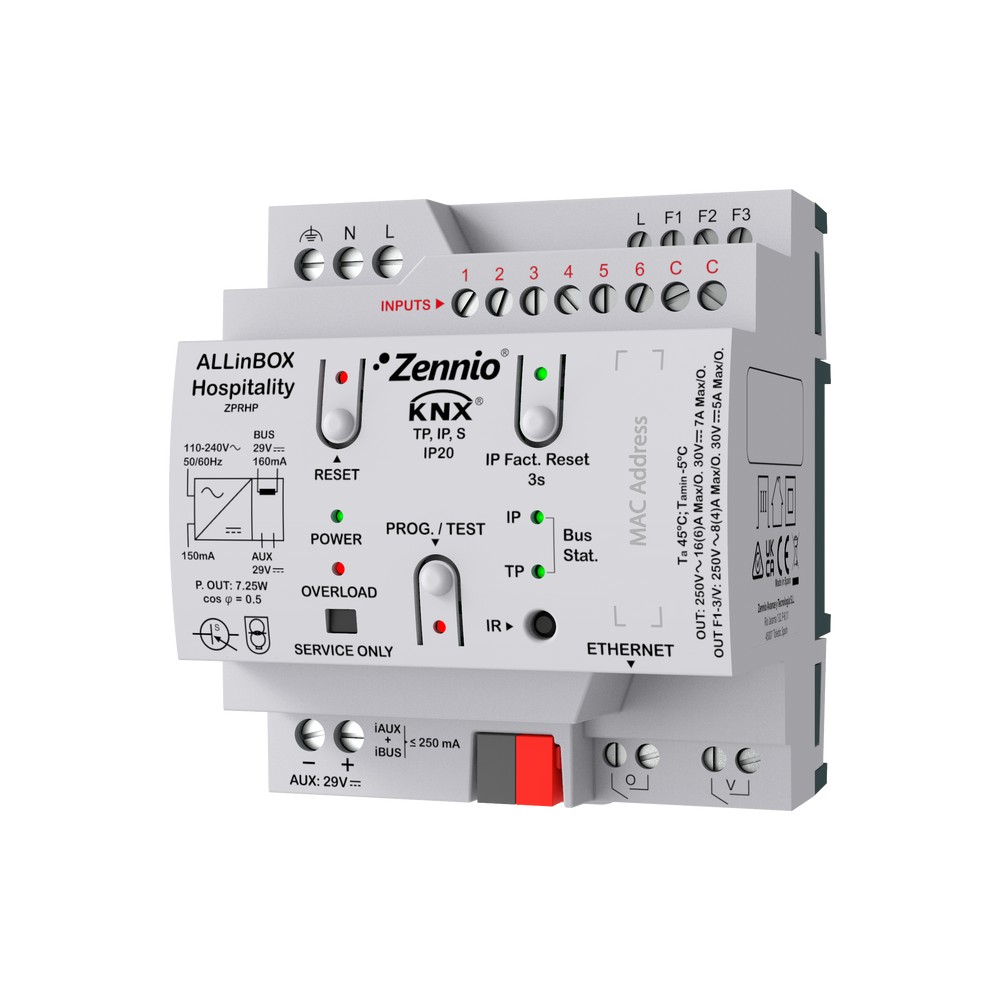

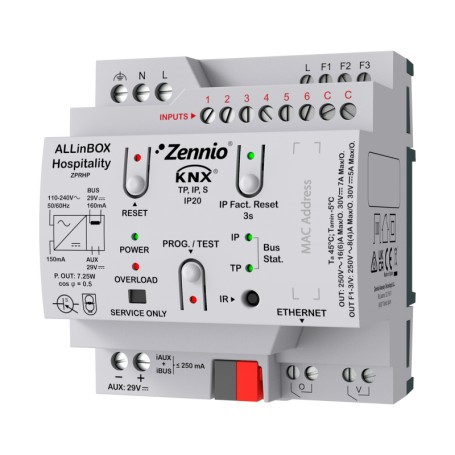

Zennio ZPRHP, multifunction actuator, KNX, power supply, IP interface

ALLinBOX Hospitality

Zennio

ZPRHP

030300ZPRHP

8411080789044

New

Multifunctional device with KNX power supply, KNX-IP interface, 6 inputs and 4 outputs for controlling a 2-pipe fan coil plus an additional 16 A C-load output.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 67.00 Millimeter
Mounting options DIN-Rail mounting
Horizontal pitch (HP) 4.5000
External power supply 110-240VAC
Width 90.00 Millimeter
Portection rating IP20
Height 79.00 Millimeter
Voltage (typical) 29.00 Volt
Min. ambient temperature 5.00 Celsius
Input type analog/digital
Number of inputs 6.0000
Voltage Range (Min.) 21.00 Volt
Max. ambient temperature 45.00 Celsius
Voltage Range (Max.) 31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 4.0000
Power consumption (W) 0.00 Watt
Output Current 0.25 Ampere
Output Power 0.00 Watt
Actuator Type Multifunction Actuator
Operation humidity 3 to 95% RH (without condensation)
Bus system KNX TP (Twisted Pair)
Connection Type KNX bus terminal
KNX Secure No
