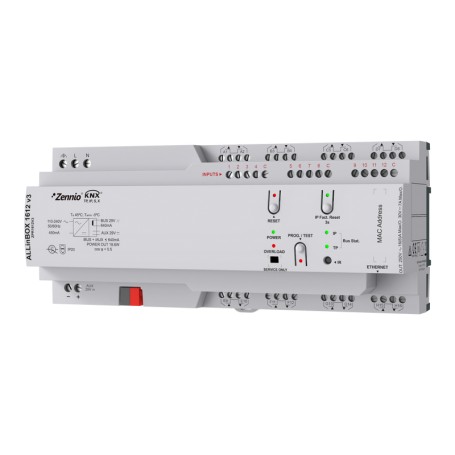

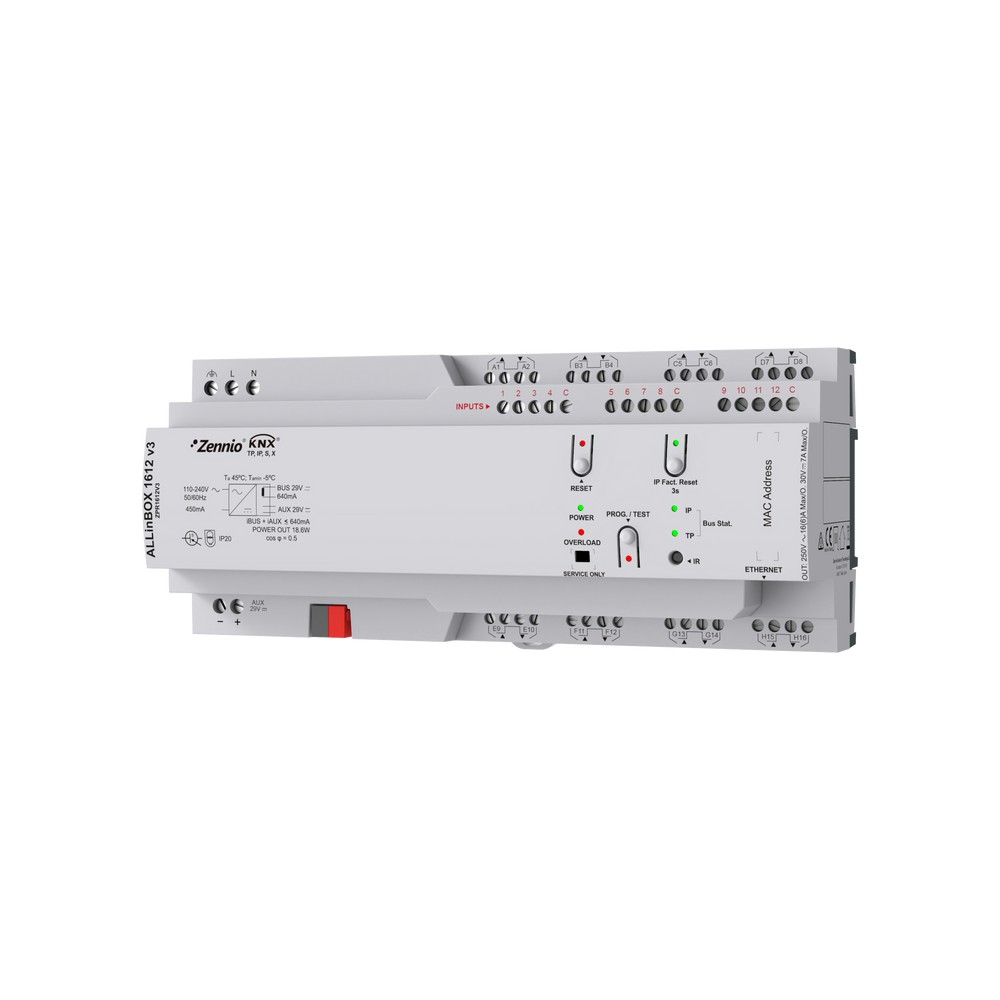

New ALLinBOX 1612 v3

Multifunction device with power supply, KNX-IP Interface, 16 outputs, 12 inputs

ALLinBOX 1612 v3

Zennio

ZPR1612V3

B-003-155417

8411080789426

New

The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 640 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 12 analog/digital inputs and 16 relay outputs (16 A C-Load) in only 12 DIN rail units. Offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2/4 pipes). It is compatible with KNX Secure.

More details

Prices are only visible for registered customers. Create an account now.

Customer ratings and reviews

Nobody has posted a review yet

Data sheet

Length 212.00 Millimeter
Mounting options DIN-Rail mounting
External power supply 110-240VAC
Width 72.00 Millimeter
Portection rating IP20
Height 90.00 Millimeter
Voltage (typical) 230.00 Volt
Min. ambient temperature 5.00 Celsius
Number of inputs 12.0000
Voltage Range (Min.) 110.00 Volt
Max. ambient temperature 45.00 Celsius
Voltage Range (Max.) 240.00 Volt
Résponse devant une récupération de perte d'alimentation KNX Data backup
Number of outputs 16.0000
Power consumption (W) 4000.00 Watt
Output Current 16.00 Ampere
Output Power 4000.00 Watt
Actuator Type Multifunction Actuator
Operation humidity 5 to 95% RH (without condensation)
Connection Type KNX bus terminal + screw terminal
KNX Secure Yes
