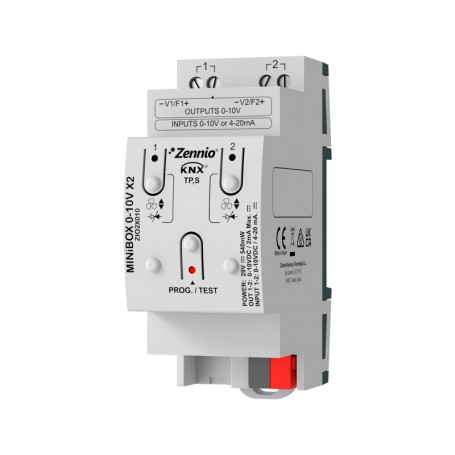

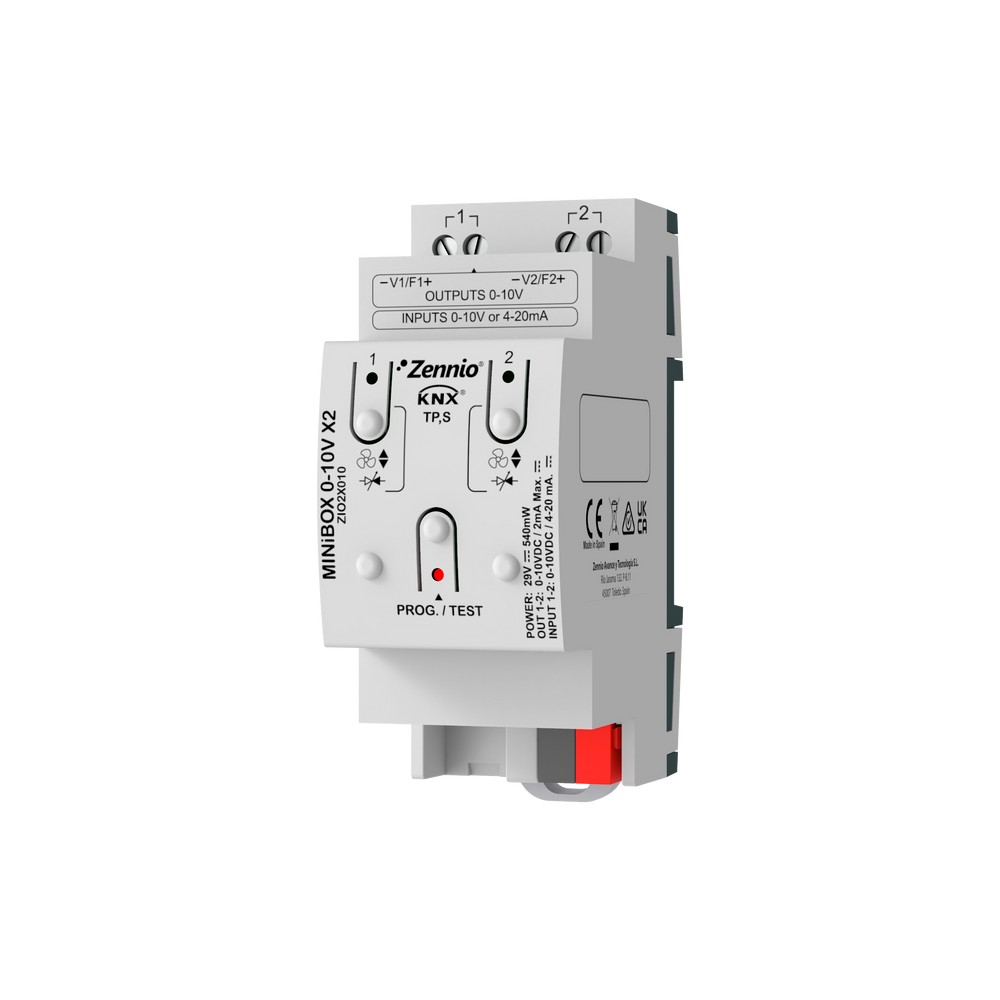

Zennio ZIO2X010, multifunction actuator, 0-10V, fan coil, status display LED

Product Name: MINiBOX 0-10V X2

Manufacturer: Zennio

Manufacturer-Nr.: ZIO2X010

Reference: 030300ZIO2X010

Condition: New

DIN rail mounting actuator (2 DIN wide) with 2 channels configurable as 0-10 V outputs, 0-10 V inputs or 4-20 mA inputs.

Customer ratings and reviews

Nobody has posted a review yet

Rate it

Length	67.00 Millimeter
Mounting options	DIN-Rail mounting
Horizontal pitch (HP)	2.0000
External power supply	Aucun requis
Width	90.00 Millimeter
Portection rating	IP20
Height	36.00 Millimeter
Voltage (typical)	29.00 Volt
Min. ambient temperature	0.00 Celsius
Input type	analog
Max. ambient temperature	55.00 Celsius
Number of inputs	4.0000
Voltage Range (Min.)	21.00 Volt
Voltage Range (Max.)	31.00 Volt
Résponse devant une récupération de perte d'alimentation KNX	Data backup
Output type	analog
Number of outputs	1.0000
Power consumption (W)	0.00 Watt
Output Current	0.00 Ampere
Output Power	0.00 Watt
Actuator Type	Multifunction Actuator
Operation humidity	5 to 95% RH (without condensation)
Bus system	KNX TP (Twisted Pair)
Connection Type	KNX bus terminal + screw terminal
KNX Secure	No
